Spacers for GEONFLEX, GEOSUB conduits

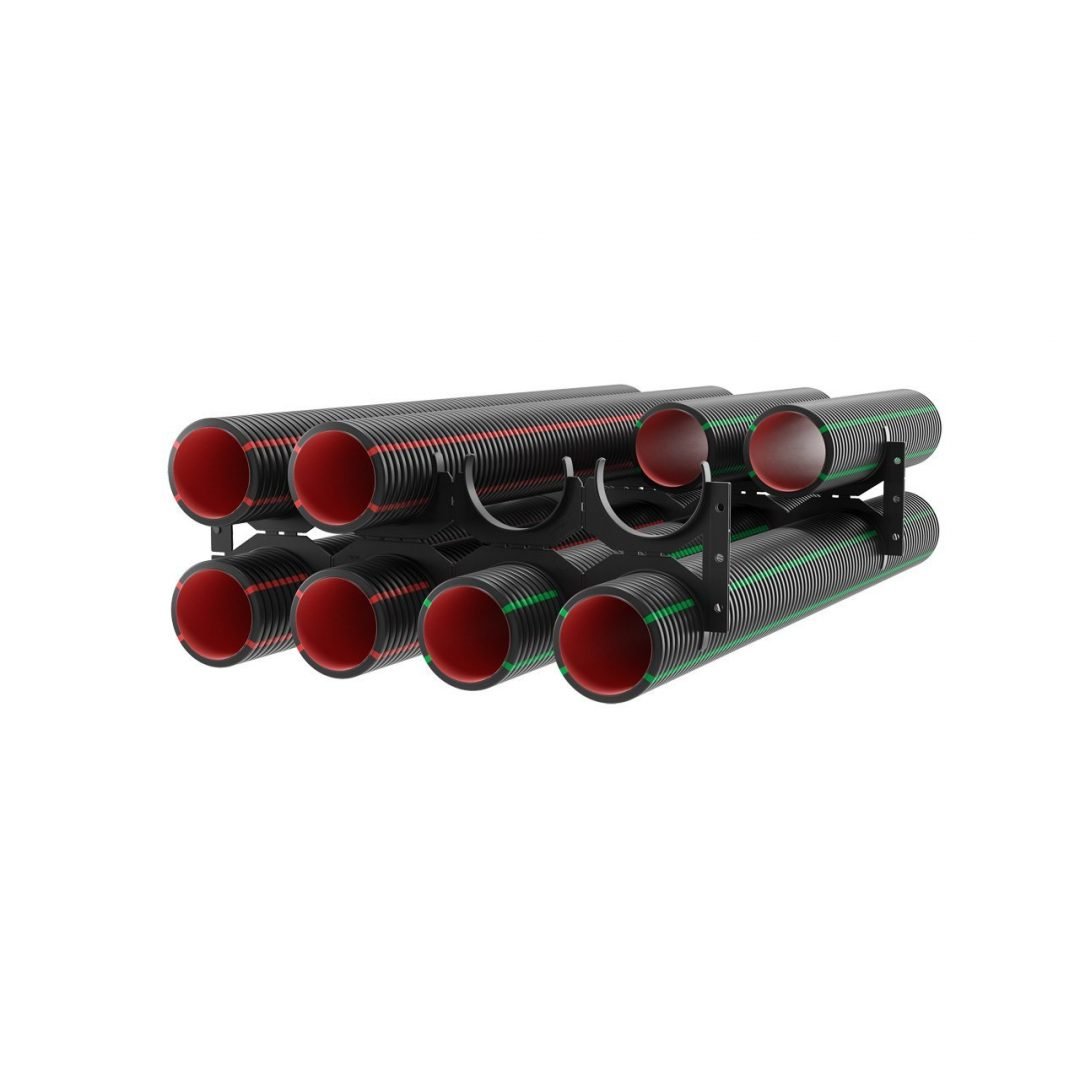

A spacer is a useful fitting that is used in plastic conduits installations in buried underground power and telecommunication networks. It helps create a straight and stable routing that facilitates the passage of cables inside the conduits and enables their immediate identification maintaining their locations fixed along the entire network. It also ensures the constant and uniform filling of the installation trench while also it improves the heat transfer effect between cables which becomes more prominent when conduits are in direct contact with each other. The use of spacers can significantly shorten the installation time since it is not required to install posts or use other materials in order to separate the conduits in the trench.
APPLICATION FIELD
Ideal for protection and management of buried underground power and telecommunication networks.
- COLOR:RAL 9004 Black
Product Conformity to all requirements of relative European Directives.- Product that propagates flame
- Product is made of halogen free raw materials
- Nominal outer diameter (mm)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
- PROJECTS
1It is recommended that spacers be placed at 1.5 metre intervals, so that the appropriate distance between them can be maintained

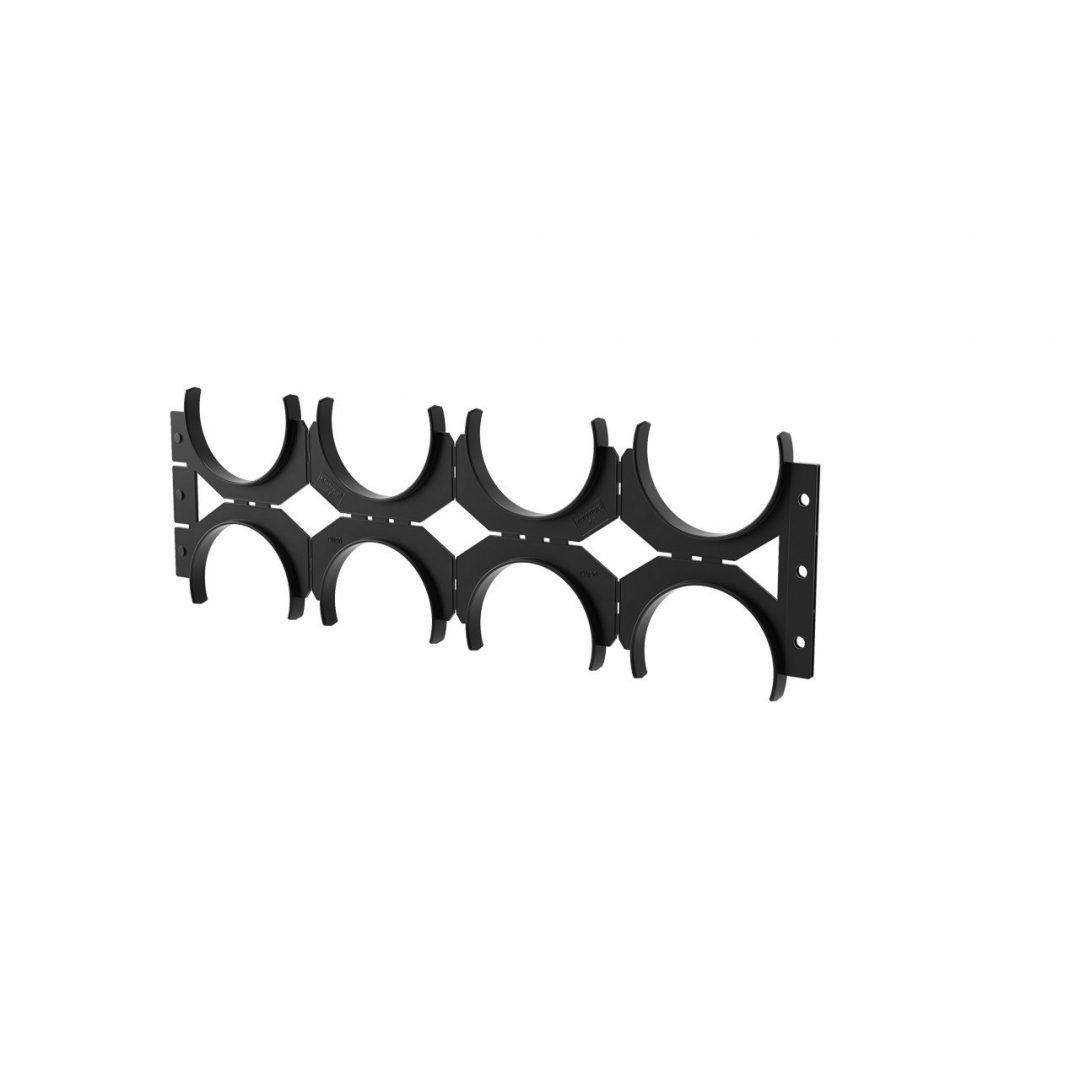

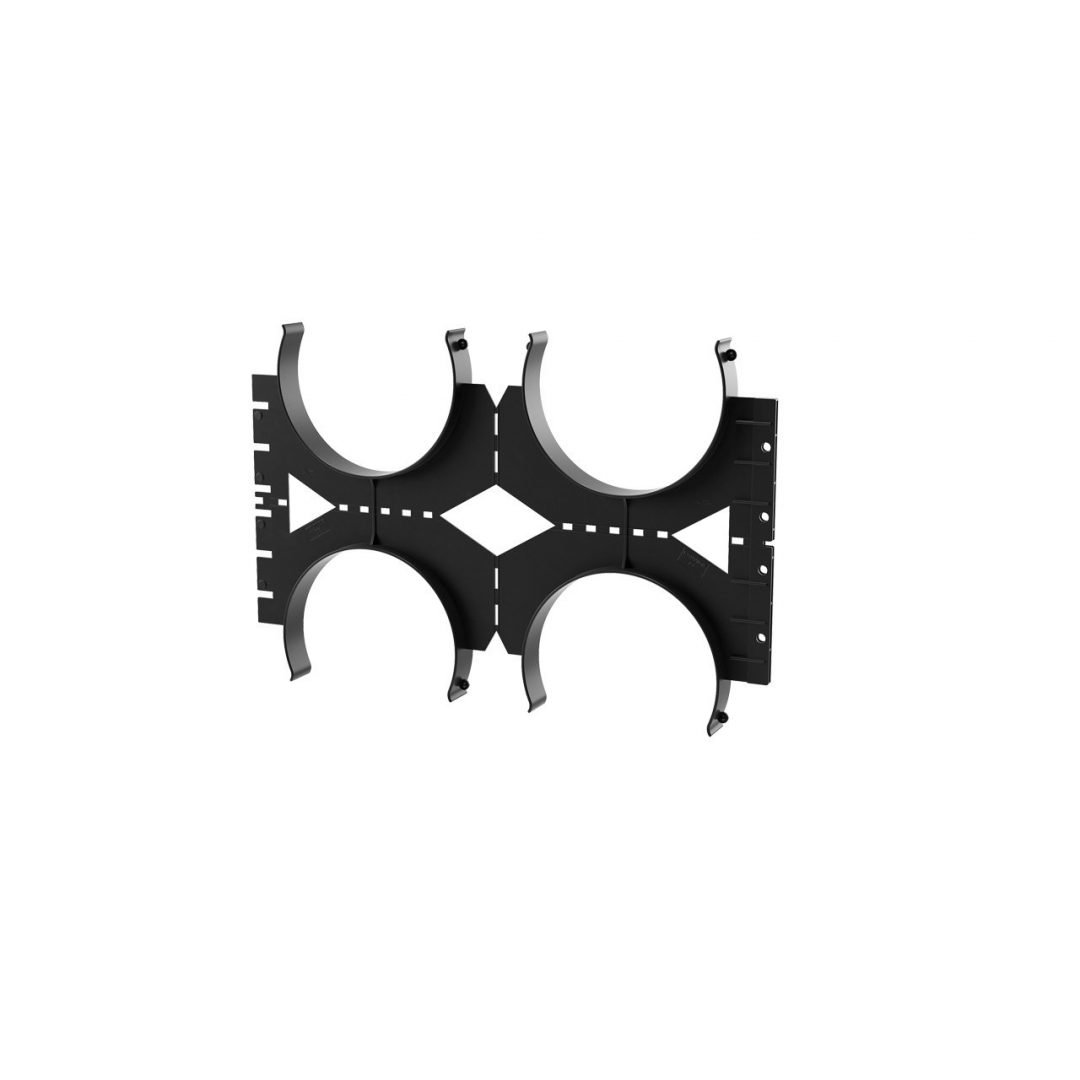

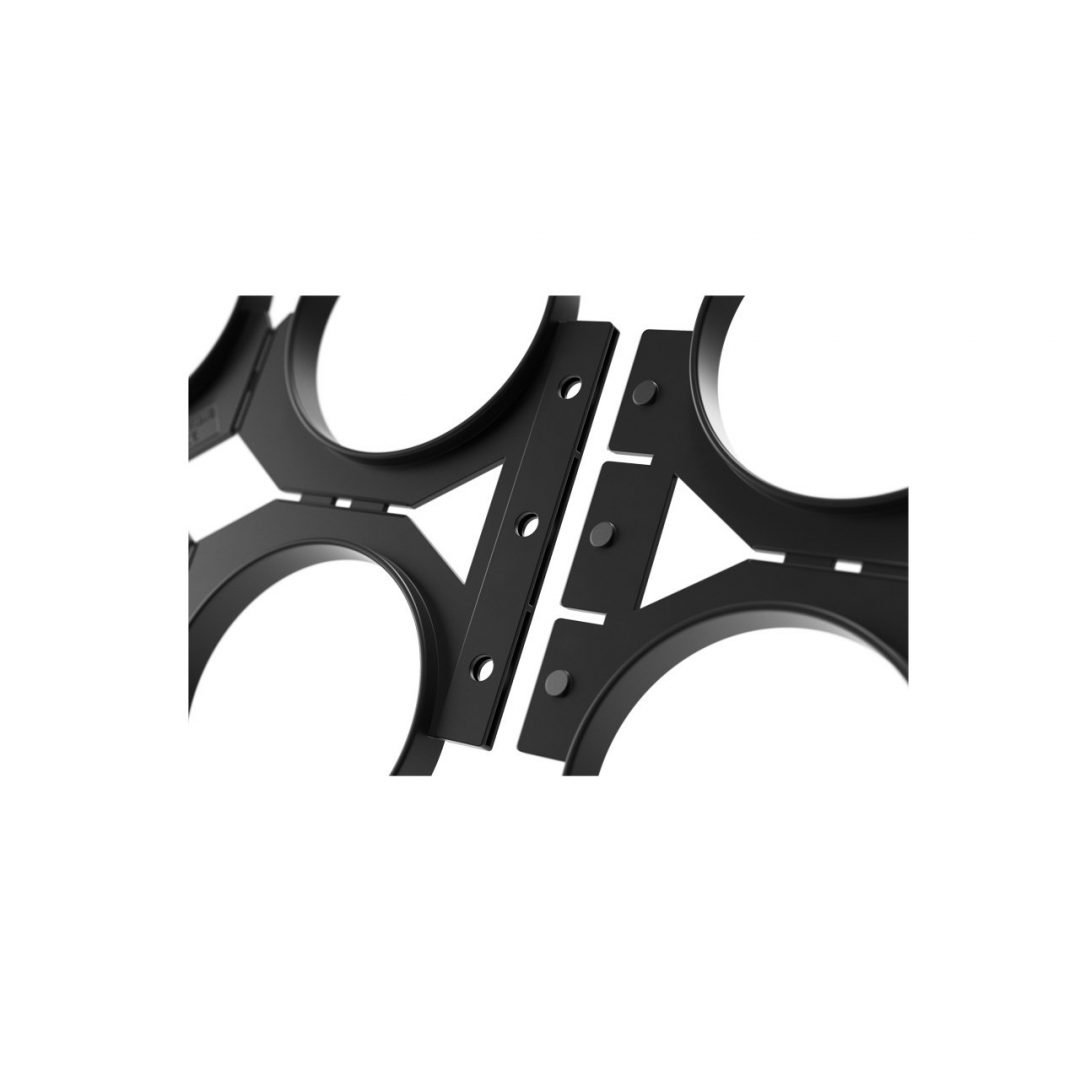

2They have two rows of support points (four support points each) and they can be easily joined, thanks to their intelligent connection system
3Their special construction allows them to be easily separated in a single move, in one row or in fewer positions depending on the requirements of the specific installation
4There is sufficient support width at each position to prevent the creation of point loads on the conduits
| Properties | |
| Raw material | Specially stabilized thermoplastic PP, halogen free and heavy metals free (RoHS) |
| Electrical characteristics | With electrical insulated characteristics |
| Resistance to flame propagating | Flame propagating |
| Compatibility (conduit nominal outer diameter) | Ø50, Ø63, Ø75, Ø90, Ø110, Ø125, Ø160, Ø200 |

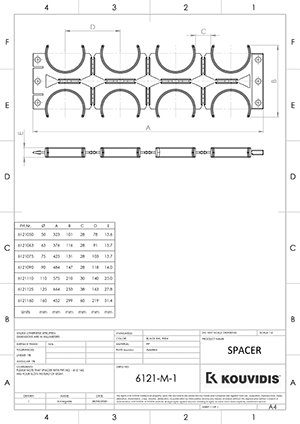

| Type | No. of positions | Part number |  |
 |
 |
 |
 |
 |
| Ø50 | 8(4χ2) | 6121050 | 323 | 101 | 28 | 78 | 45 | 3960 |
| Ø63 | 8(4χ2) | 6121063 | 376 | 116 | 28 | 91 | 25 | 2400 |
| Ø75 | 8(4χ2) | 6121075 | 425 | 131 | 28 | 103 | 20 | 1920 |
| Ø90 | 8(4χ2) | 6121090 | 484 | 147 | 28 | 118 | 72 | 2016 |
| Ø110 | 8(4χ2) | 6121110 | 575 | 210 | 30 | 140 | 42 | 672 |
| Ø125 | 8(4χ2) | 6121125 | 664 | 233 | 38 | 163 | 32 | 384 |
| Ø160 | 4(2χ2) | 6121160 | 452 | 299 | 60 | 219 | 39 | 468 |
| Ø200 | 4(2χ2) | 6121200 | 1118 | 344 | 67 | 279 | 22 | 264 |
