Intended for electrical installations in suspended ceilings.

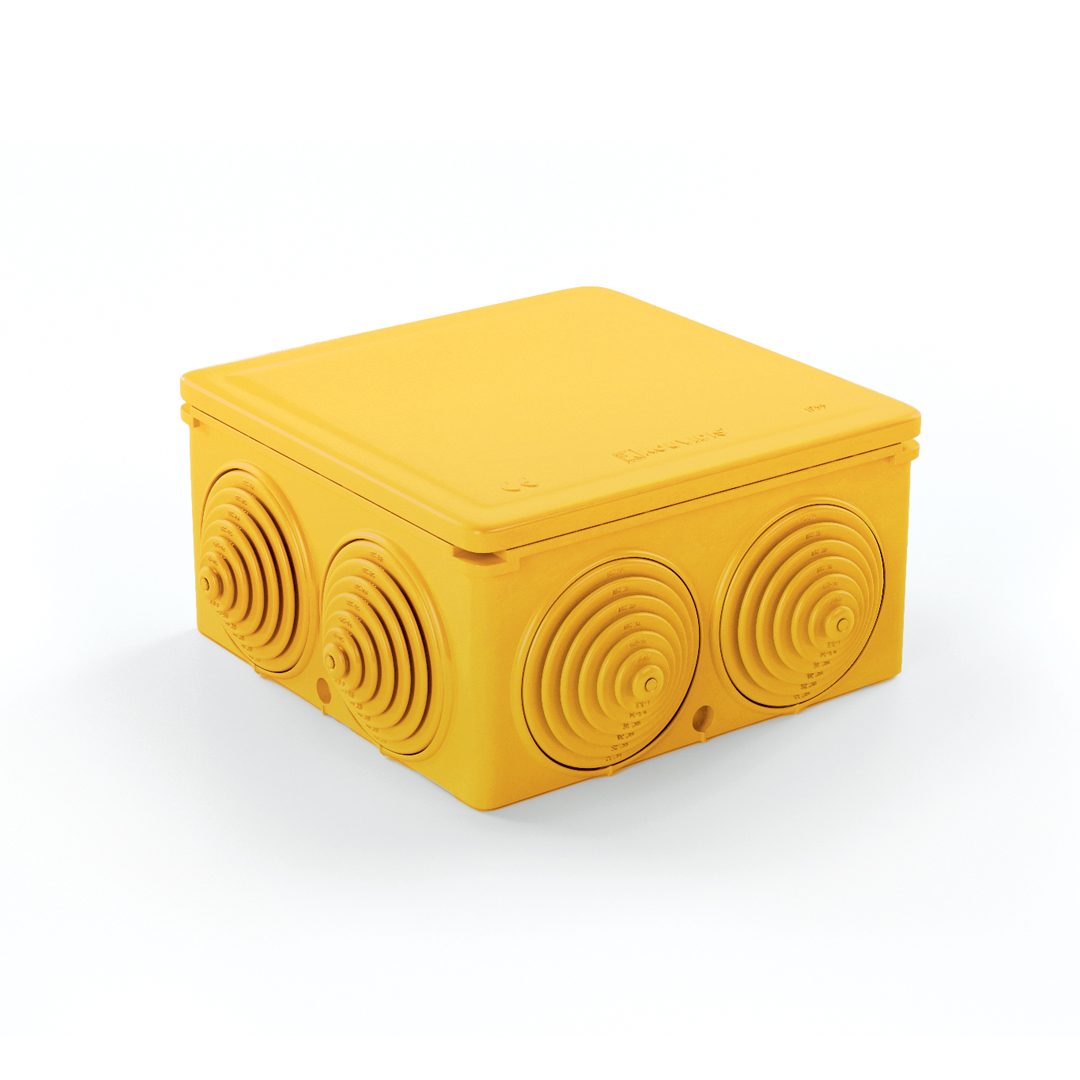

SUPERSOL PLUS ISR SUPERSOL PLUS junction box with grommets
SUPERSOL PLUS junction box with grommets is part of the 3layer conduits system SUPERSOL PLUS – SUPERFLEX PLUS. It is produced by specially stabilized thermoplastic PO blend in yellow color RAL 1023.
Along with the 3layer conduits SUPERSOL PLUS and SUPERFLEX PLUS, the fittings (connection coupler and clip), all in yellow color RAL 1023, they compose a special conduit system which is capable of covering multiple needs at the electrical installation.
APPLICATION FIELD
- APPLICATION STANDARD:EN 60670-22
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 1023 Yellow
Product Conformity to all requirements of relative European Directives.- Min-max permanent application temperature
- Ingrees protection against solid objects and water (EN 60529)
- Non flame propagating product
- Product is made of halogen free raw materials
- Antistatic Technology IAS (Patent Protected 1009810)
- Antiscratch Technology ISR (Patent Protected 1010513)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1The holes are plugged in with special grommets for easy cable entry. The indicated dimensions on them is a guide for proper drilling depending on the thickness of the incoming cable
2Watertight due to their elastic and directly mounted cover plate, providing Ingress Protection IP 55
3At the base of the boxes are four inputs (knock outs) with dimensions between Ø20 and Ø32 of which conduits or wires can be entered. Their removal is performed using an additional tool
4On each side there are special guides for the horizontal / vertical alignment of the box with the rest of the installation
5Each side of the boxes has provision for condensation when needed for the electrical installation
6Flame retardant raw materials with 650oC thermal resistance (Glow wire test- IEC 60695-2)
7Inside the boxes there are special ports for horizontal or diagonal positioning of additional installation mechanisms (e.g. Starters)
8There is a useful guide at the cover plate's back related to the cables' diameter connections number at an installation
9The permissible operating circuits voltage inside the box can be up to 800V, allowing the use of three-phase circuits of normal operation 400VAC (±10% or ±15%) and DC circuits of photovoltaic or other applications
10No toxic or corrosive gases in case of fire
11Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
12Protection against scratching from cable routing (Patent Protected: 1010513)
| Properties | |
| Raw material | PO blend |
| Temperature range | -25oC to +60oC |
| Electrical characteristics | With electrical insulated characteristics |
| Resistance to flame propagating | Non flame propagating |
| Number of entries | 7 |
| Seals | Plug in grommets |
| Ingress protection | ΙΡ55 |
| Number of base knock outs | 4 |
| Conduit alignment | Yes |
| Condensation opening | Yes |
| Flame retardant | 650oC |
| Voltage | 800V |
| Halogen free | No toxic or corrosive gases in case of fire |
| Antistatic technology | Protection against static electricity |
| Antiscratch Technology | Protection against scratching from cable routing |
| Type | Part number |  |
 |
 |
 |
 |
| Ø16/20 | 3036016 | 67 | 67 | 38 | 10 | 240 |
| Ø20/16 | 3036020 | 82 | 82 | 43 | 10 | 160 |
| Ø25/32 | 3036025 | 101 | 101 | 51 | 5 | 40 |
