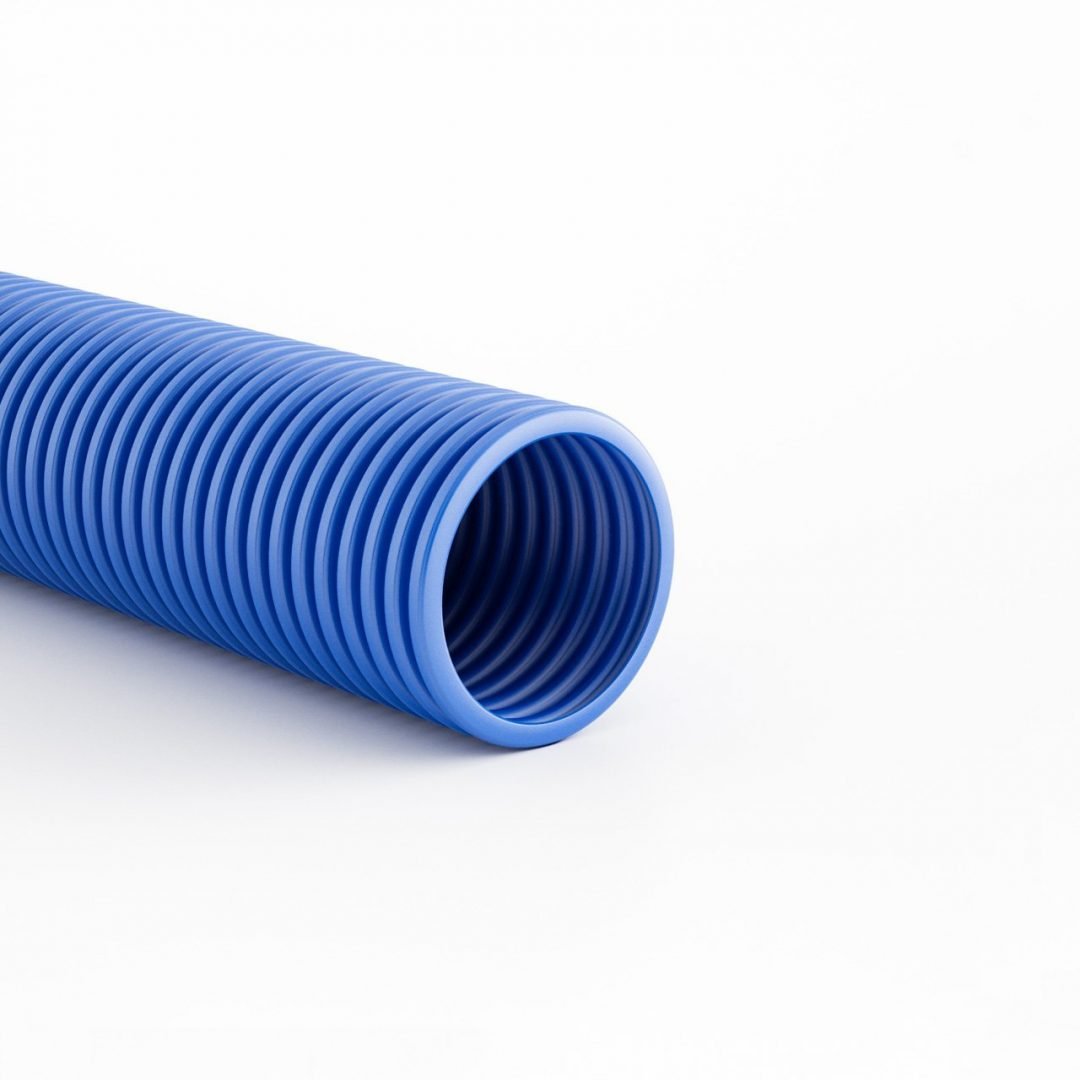

HYDROFLEX Corrugated pliable conduit
- IMPACT RESISTANCE:2J
HYDROFLEX pliable conduit has been produced since 1985 and is one of the most famous products of KOUVIDIS. Its special design allows the faster introduction of pipes as well as their easy replacement in case of damages. It achieves high impact resistance >2Joule as it is produced according to a stricter European Standard (EN 61386.22, applied for plastic piping systems for cable management and protection).
APPLICATION FIELD
Protection of pressure, heat and water piping systems (PE-X, PP, PB).
- APPLICATION STANDARD:EN 61386.22
- INSTRUCTIONS FOR COMPLIANCE:2011/65/EE (RoHS)

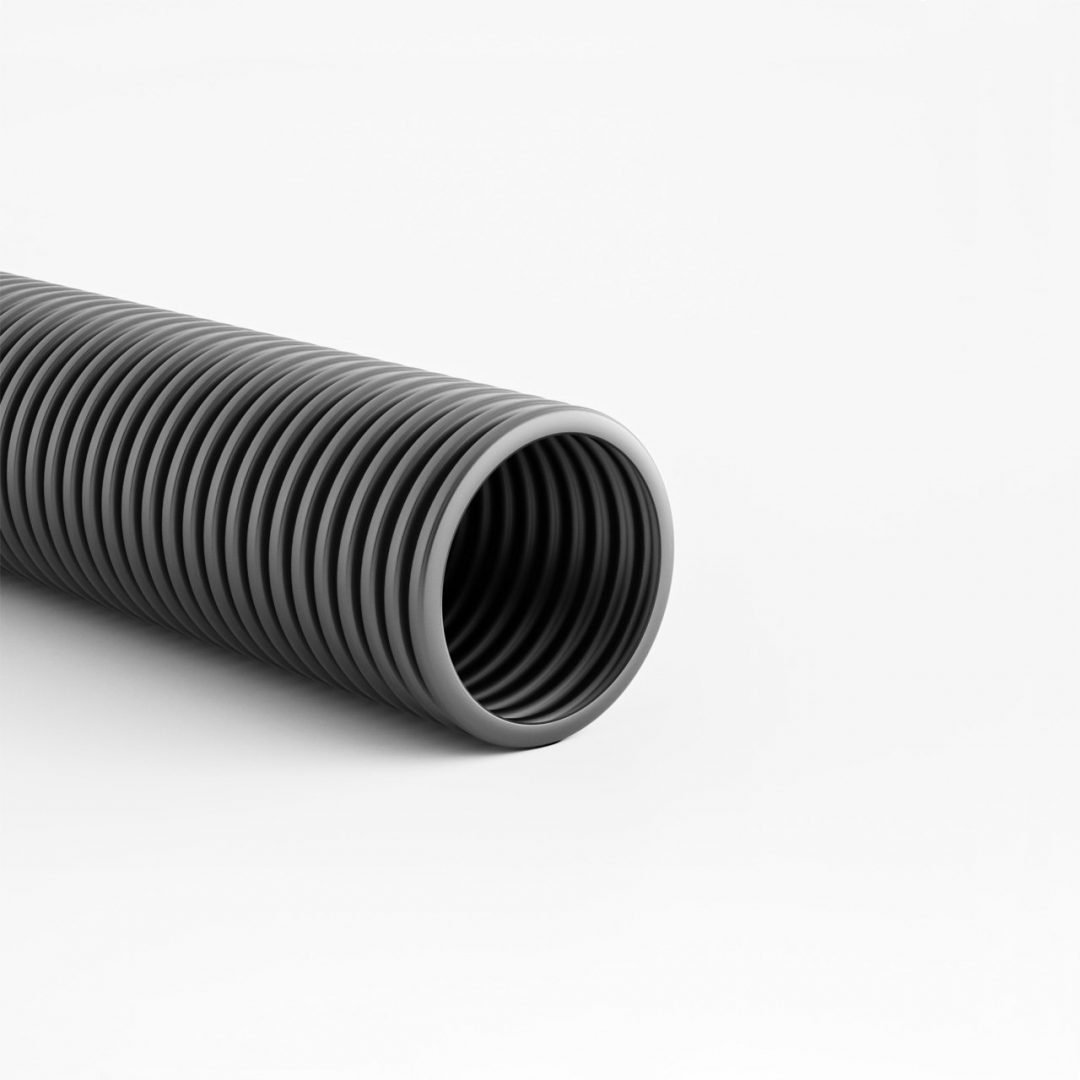

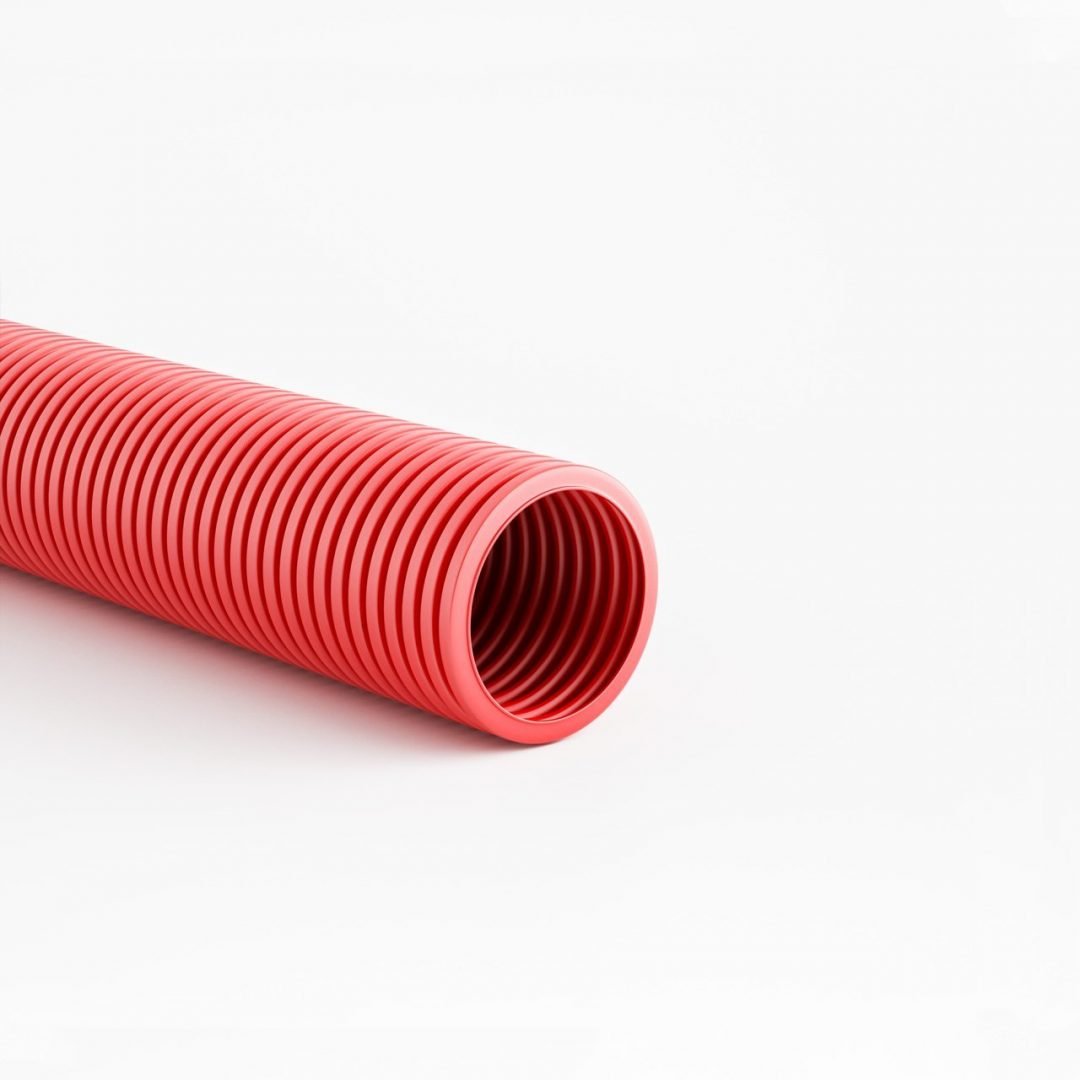

- COLOR:RAL 5015 Blue, RAL 9004 Black, RAL 3020 Red
- NOMINAL DIAMETER:Nominal inner diameter (DN/ID)
- TIGHTNESS DEGREES:min IP 65

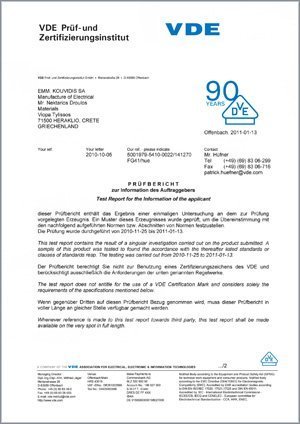

The product and its production process are inspected and approved by VDE German institute- Minimum resistance to impact
- Product with extra UV stability
- Low smoke during combustion
- Product is made of halogen free raw materials
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1High impact resistance >2Joule
2Its thick and small threads allow the faster introduction of pipes
3High temperature resistance (up to +105oC)
4Halogen free, heavy metals free
5High ingress protection IP66, when connected with HYDROFLEX couplers
6Marked using embossed printing and packed with 100% recyclable film including safety straps for their maximum protection
7Exceptional resistance to UV radiation
| Properties | |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic HDPE |
| Lower temperature range | -25oC |
| Upper temperature range | +105oC |
| Halogen free | No toxic or corrosive gases in case of fire |
| Less smoke than PVC | Better visibility of escape ways |
| Protection against ingress of solid objects | IP66 |
| Protection against ingress of water | IP66 |
| Ageing resistance | UV stabilized |

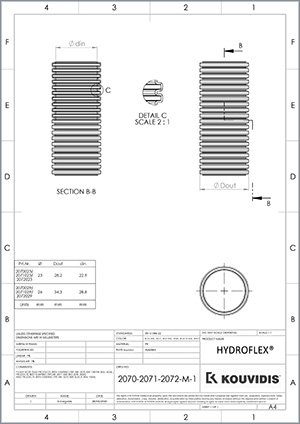

| Type | Part number |  |
 |
 |
color |
| Ø23 | 2070023 | 23 | 27.8 | 50 | blue |
| Ø29 | 2070029 | 29 | 33.5 | 25 | blue |
| Ø23 | 2071023 | 23 | 27.8 | 50 | red |
| Ø29 | 2071029 | 29 | 33.5 | 25 | red |
| Ø23 | 2072023 | 23 | 27.8 | 50 | black |
| Ø29 | 2072029 | 29 | 33.5 | 25 | black |
